By Maria Colgan-Oracle on Mar 24, 2011
In our previous post we introduced extended statistics, which help the Optimizer improve the accuracy of cardinality estimates for SQL statements that contain predicates involving a function wrapped column (e.g. UPPER(LastName)) or multiple columns from the same table used in filter predicates, join conditions, or group-by keys. So extended statistics are extremely useful but how do you know which extended statistics should be created?
In Oracle Database 11.2.0.2 we introduced Auto Column Group Creation, which automatically determines which column groups are required for a table based on a given workload. Please note this functionality does not create extended statistics for function wrapped columns it is only for column groups. Auto Column Group Creation is a simple three step process:
1. Seed column usage

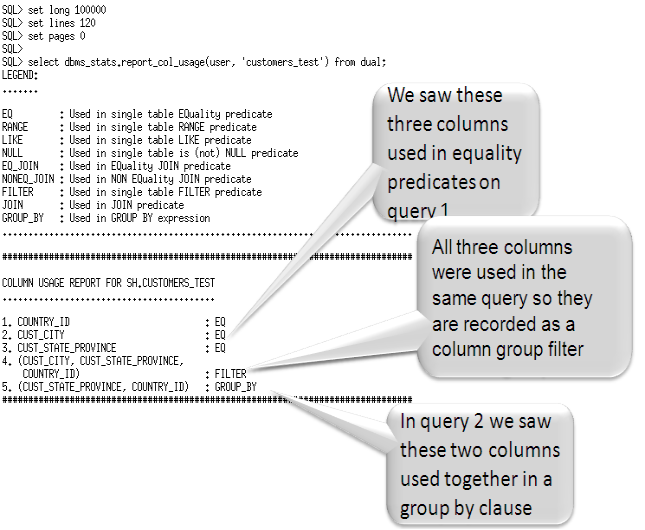

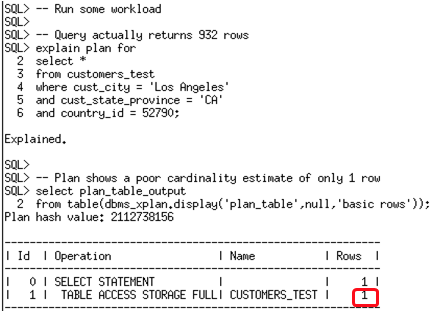

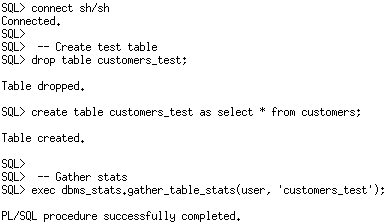

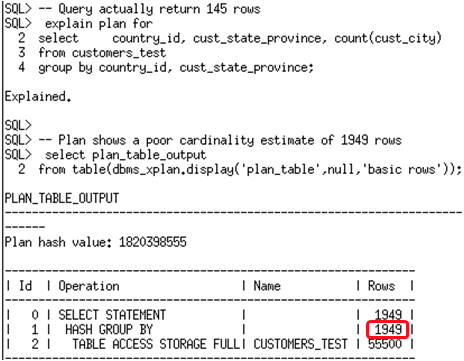

Oracle must observe a representative workload, in order to determine the appropriate column groups. Using the new procedure DBMS_STATS.SEED_COL_USAGE, you tell Oracle how long it should observe the workload. The following example turns on monitoring for 5 minutes or 300 seconds. This monitoring procedure records different information from the traditional column usage information you see in sys.col_usage$ and it is stored in sys.col_group_usage$.
2. Create the column groups

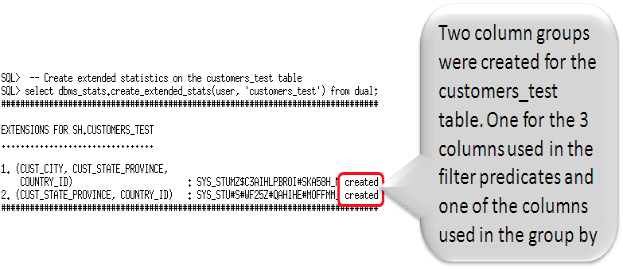

At this point you can get Oracle to automatically create the column groups for each of the tables based on the usage information captured during the monitoring window. You simply have to call the DBMS_STATS.CREATE_EXTENDED_STATS function for each table.This function requires just two arguments, the schema name and the table name. From then on, statistics will be maintained for each column group whenever statistics are gathered on the table. In this example you will see two column groups were created based on the information captured from the two queries in this workload.
3. Regather statistics

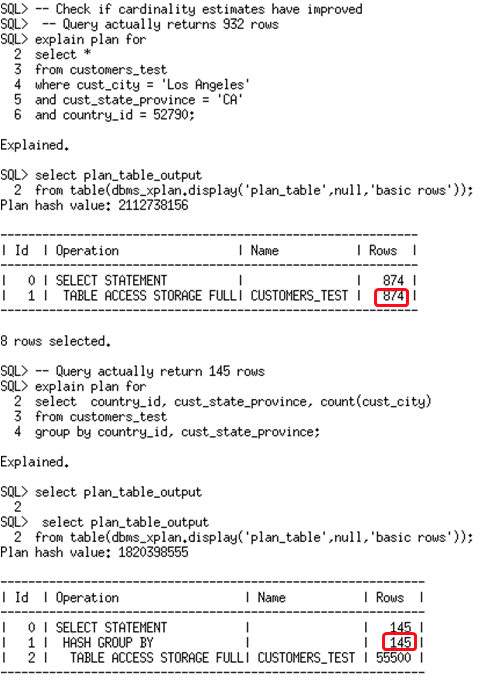

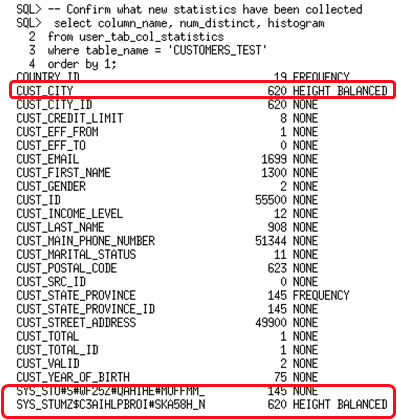

The final step is to regather statistics on the affected tables so that the newly created column groups will have statistics created for them.
